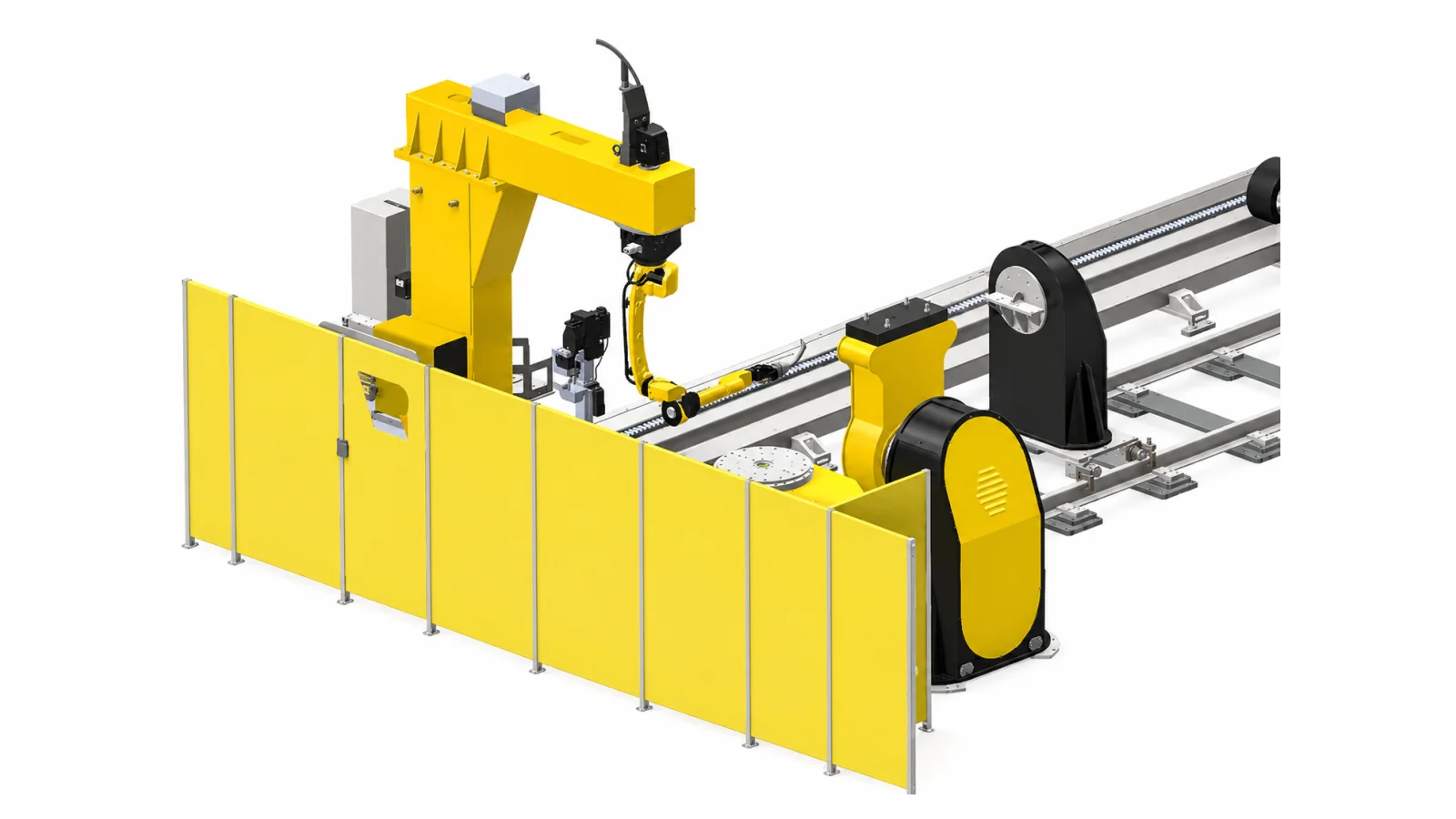

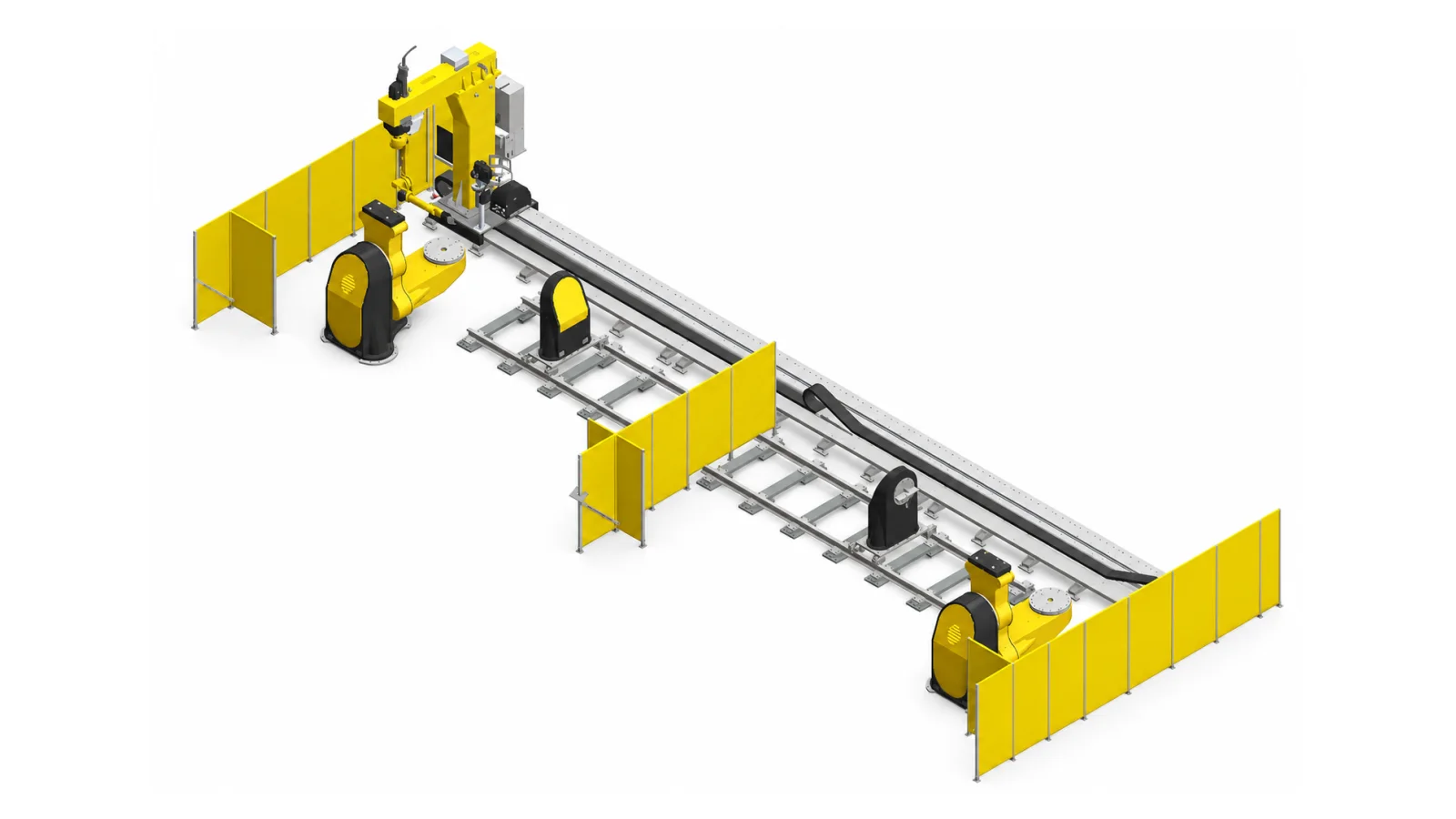

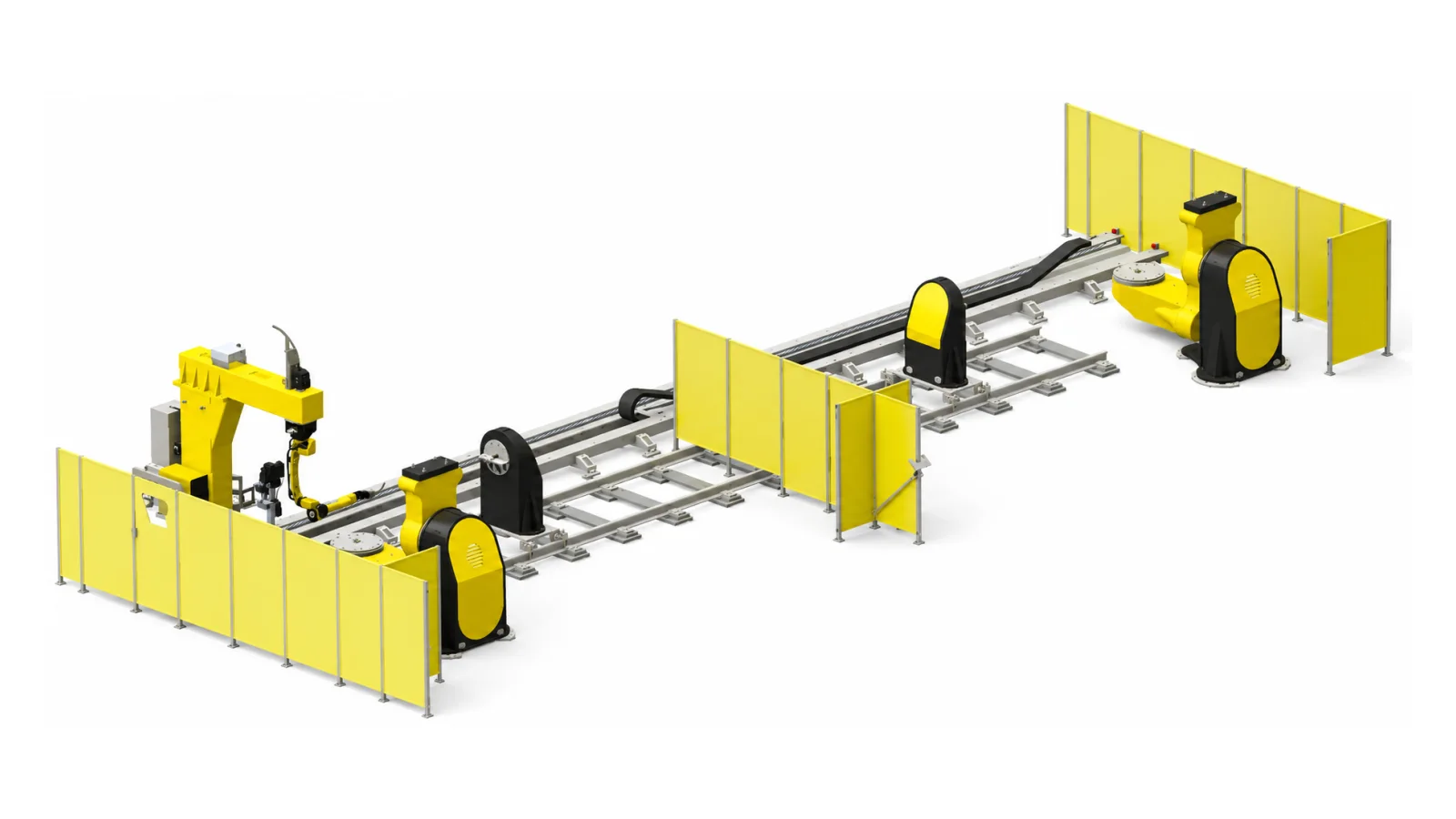

18-Metre Slider Structural Steel Welding System
Uninterrupted access on 5,000 kg class steel members; dual-axis positioners can also work as a single axis together with an idler set.
- Slider
- 18 metres
- Positioners
- 2 × dual-axis, 5,000 kg
- Rail
- 6 metres
- Programming
- MOSES offline
What the system does
In structural steel the member length sets the line. An 18-metre run with an inverted robot gives uninterrupted access on long members.
On the positioner side there are two dual-axis positioners (5,000 kg) plus an idler group. The arrangement is flexible: on short parts the positioners work separately, on long parts they act as a single axis together with the idler. The rail is 6 metres.
Welding programs are generated from the CAD model with MOSES offline programming, so a new member is programmed without stopping production.
What sets this system apart
- 18 m run with an inverted robot
- 2 × dual-axis positioners (5,000 kg) plus idler
- Flexible setup for short and long parts
- MOSES offline programming
Where is this system used?
- 01 Steel structure members
- 02 Long-seam load-bearing profiles
- 03 Construction parts of varying length
Send us your part; let's start with a sample welding trial.
Our engineering team responds with a feasibility study.
