Transportable Cell
Compact Two-Station Cell on a Single Frame
Robot, two stations and the control panel are gathered on one frame, so the cell is transportable and quick to commission.
- Stations
- 2, alternating
- Positioner
- Single-axis, 1,000 kg
- Fixtures
- Pneumatic, part-specific
- Installation
- Single frame, transportable
System Overview
What the system does
On small and medium parts the on-site installation time of a cell directly affects payback. A cell with a long site assembly starts producing late.

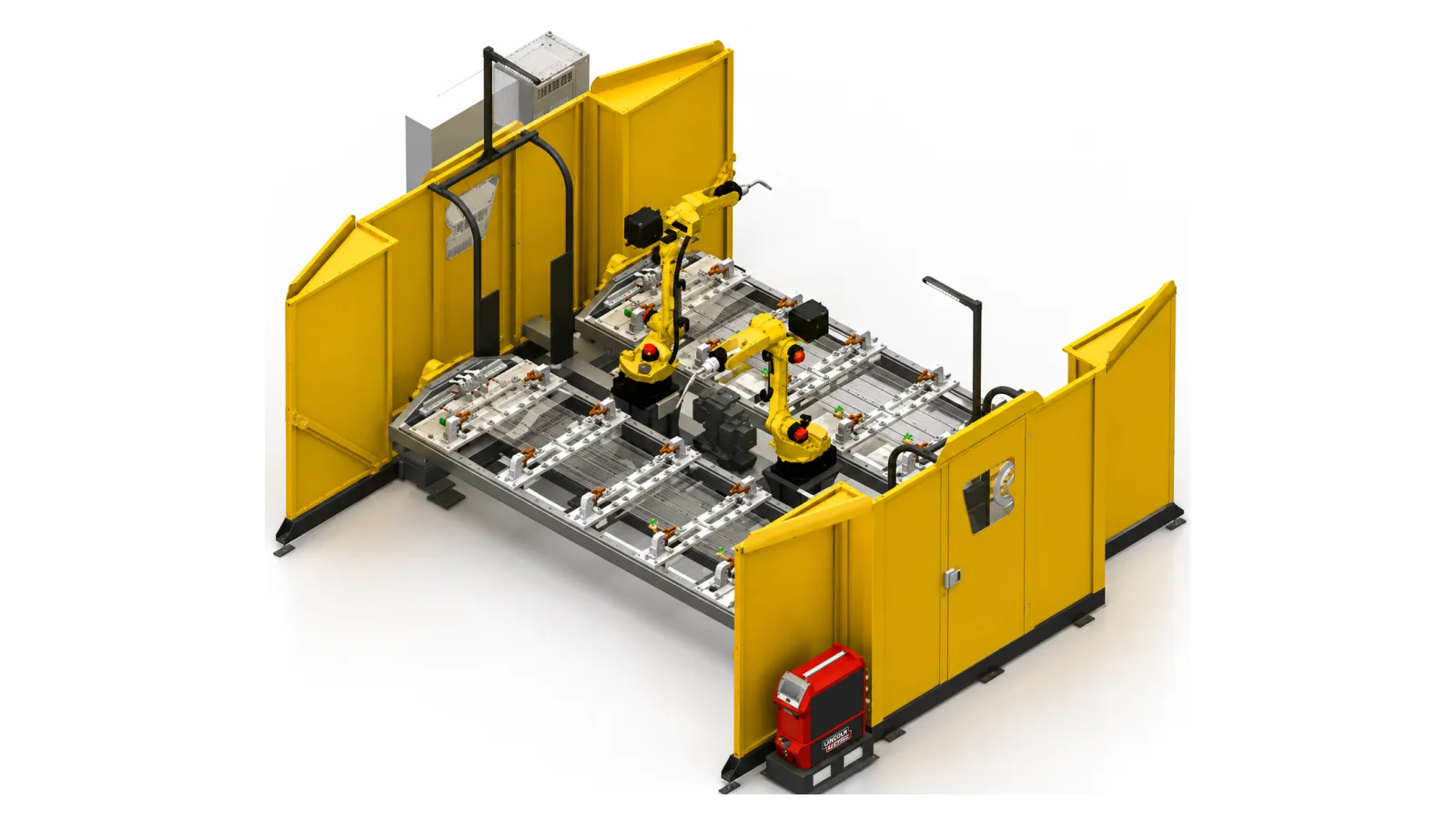

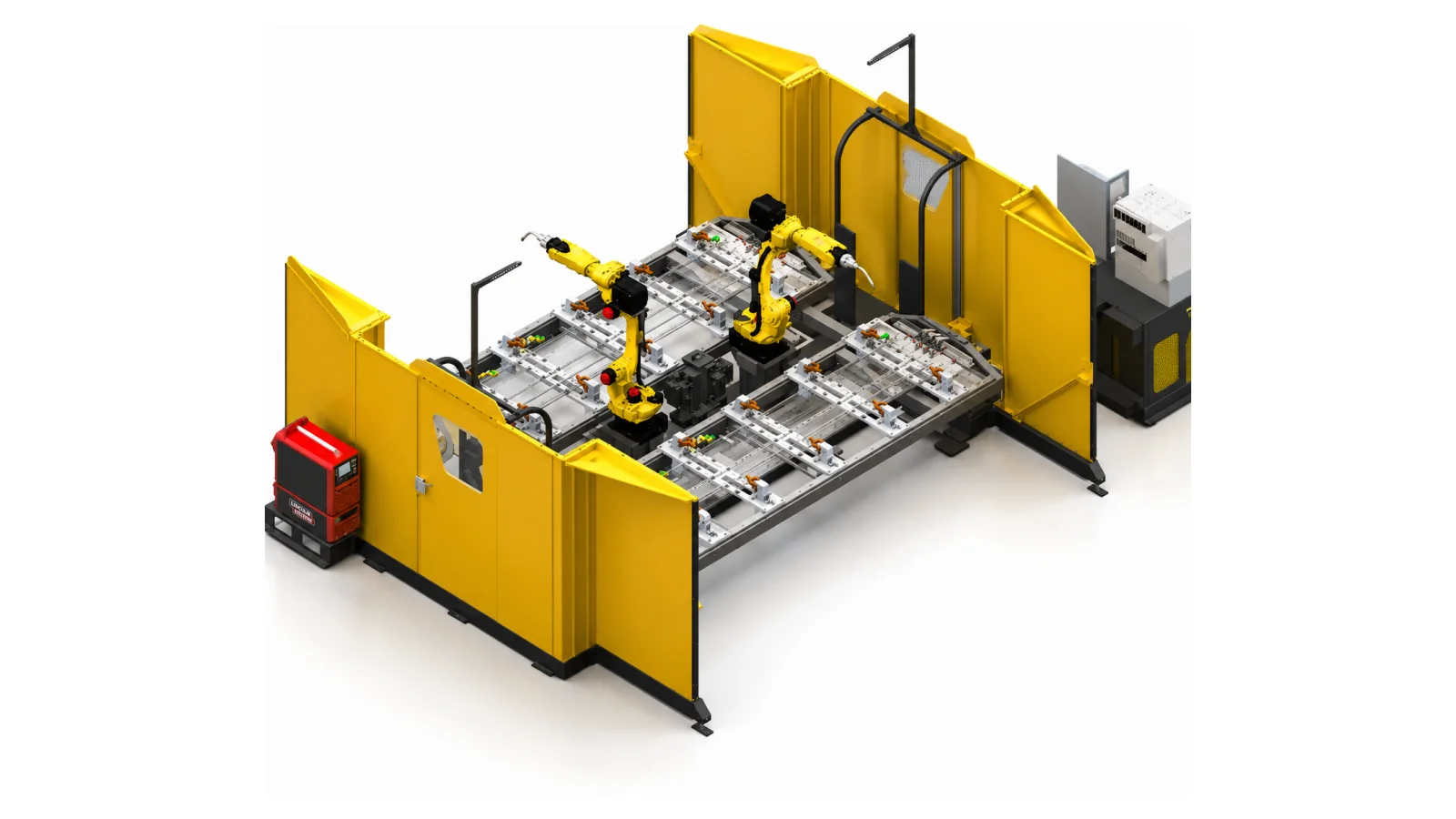

In this layout the robot, two welding stations, the positioners and the electrical panel sit on a single frame. The cell is completed at the factory, moved to site as one unit and commissioned quickly.
The two stations alternate: while the robot welds at one, the operator loads the other. Pneumatic welding fixtures are designed for the part.
Highlights
What sets this system apart
- Robot, stations and panel on one frame
- Two alternating stations
- Pneumatic welding fixtures
- Short on-site commissioning time
Applications
Where is this system used?
- 01 Walkway and scaffolding members
- 02 Hooks and connection parts
- 03 Medium-size series-welded components
Related Industries
Send us your part; let's start with a sample welding trial.
Our engineering team responds with a feasibility study.
