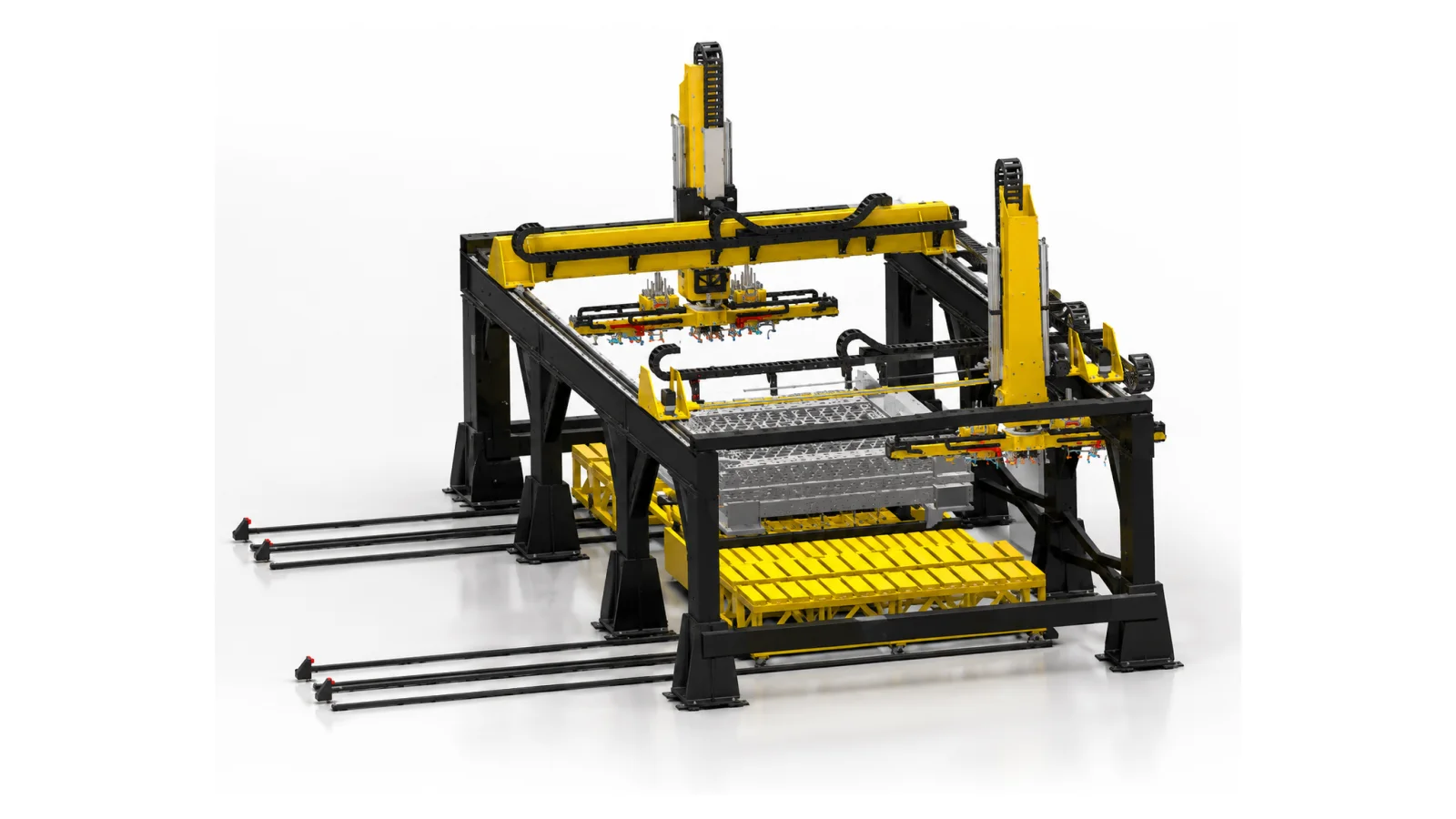

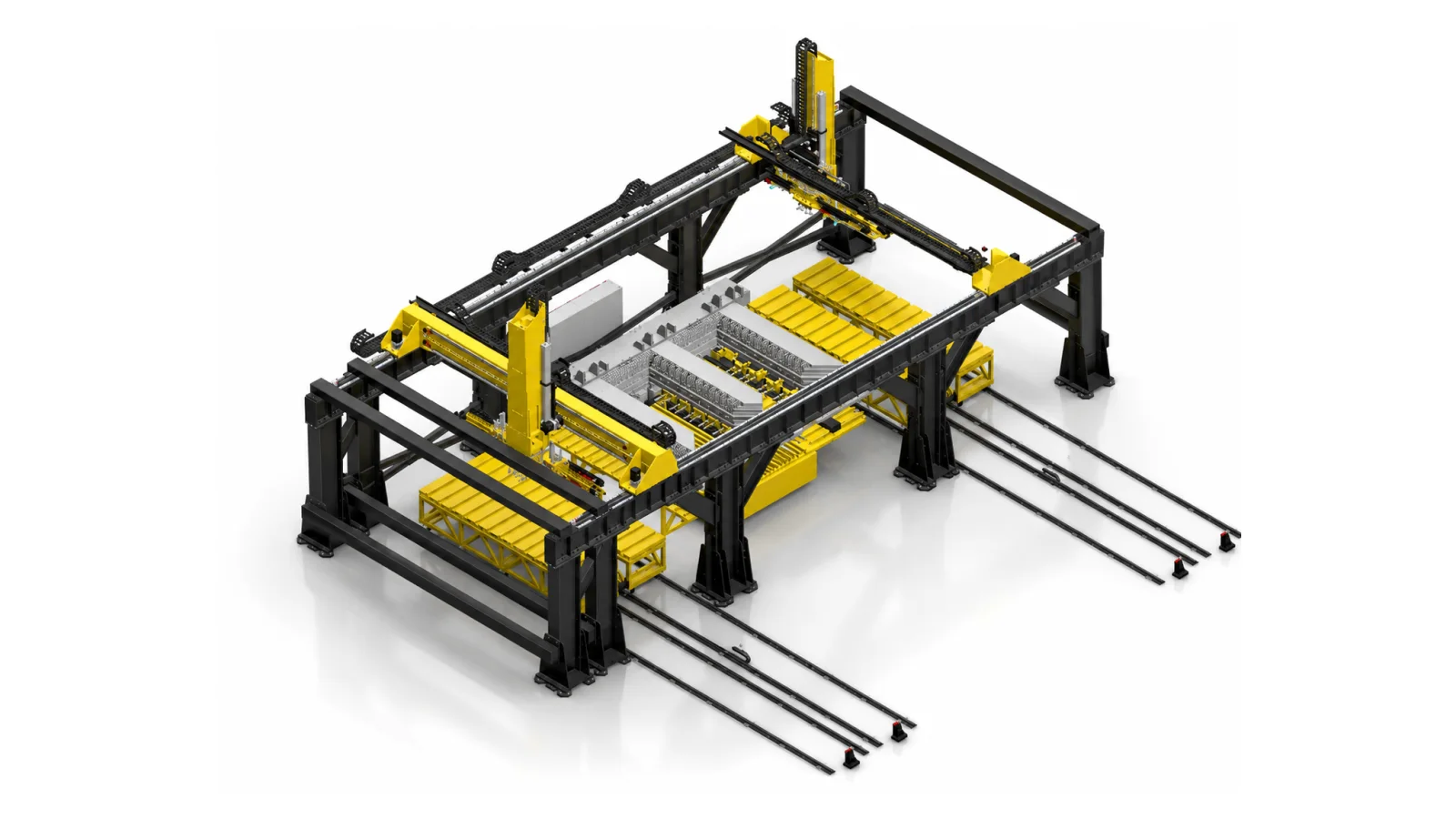

Fully Automatic Core Stacking Station
Twin cartesian gantries stack 0.23–0.30 mm silicon steel laminations to ±0.2 mm with camera-guided referencing. An assembly application, not welding.
- Accuracy
- ±0.2 mm
- Core Size
- Up to 4,644 × 3,840 mm
- Lamination
- 0.23 / 0.27 / 0.30 mm
- Robots
- 2 sets of 4-axis cartesian gantries
What the system does
Core stacking is the most labour-intensive step in transformer manufacturing, and misalignment comes straight back as no-load loss. In manual stacking both cycle time and accuracy depend on the operator.
Two sets of four-axis servo cartesian gantries work on this station. A force-controlled vacuum gripper tolerates lamination thickness variation and picks the sheet without damage. Three cameras check both the pick position and stack quality.
No robot program is written for a new core type: the operator enters a recipe at the HMI and the system generates the stacking plan parametrically. Cores up to 4,644 × 3,840 mm and laminations up to 5,000 mm cover large power transformers.
What sets this system apart
- Camera-guided referencing and stack inspection
- Force-controlled vacuum gripper
- Parametric recipes from the HMI
- New core types without writing a robot program
Where is this system used?
- 01 Power and distribution transformer cores
- 02 Silicon steel lamination stacking
- 03 Step-lap core structures
