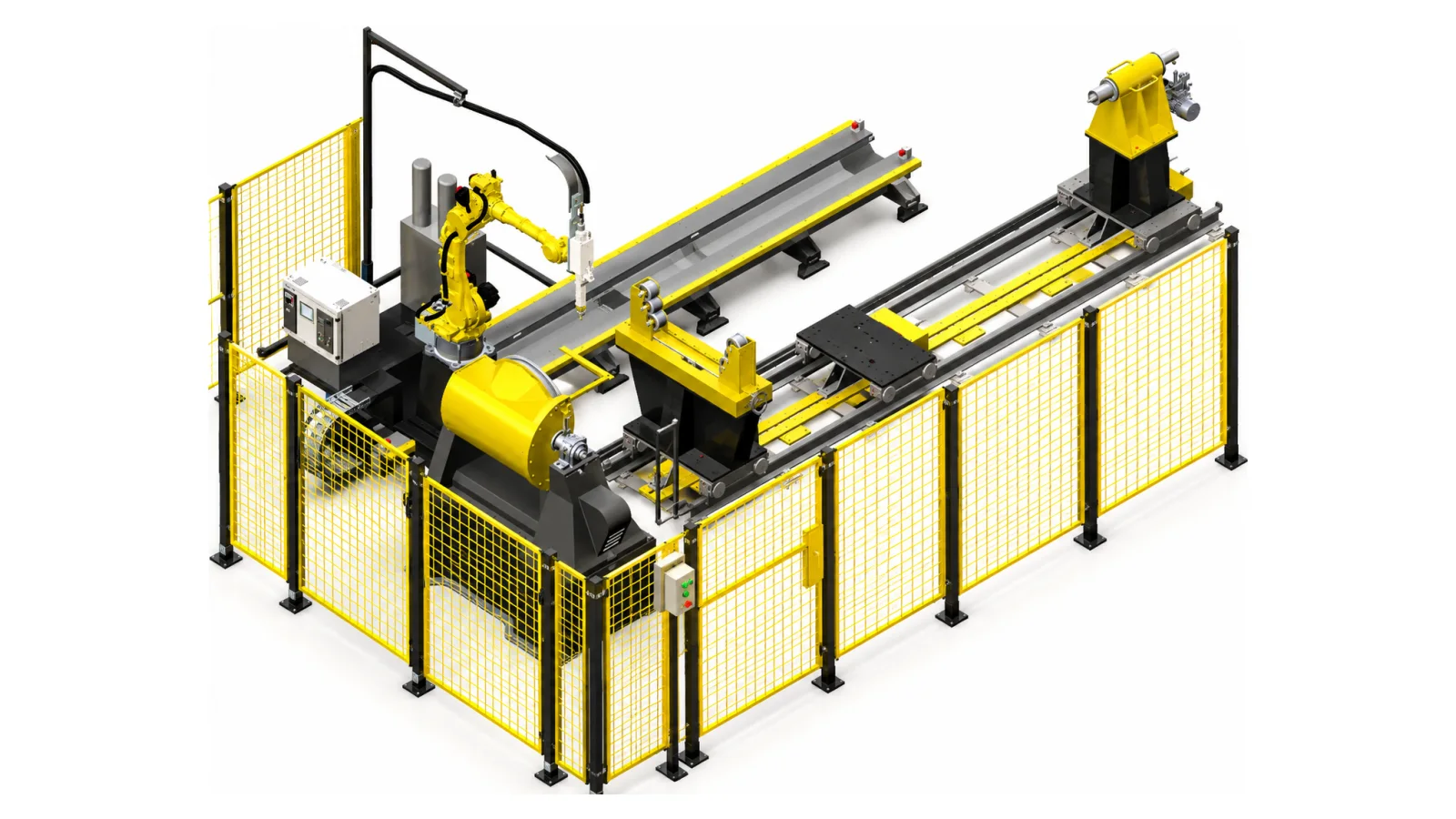

Robotic Laser Cladding System
Robotic cladding on worn shafts and hard-to-reach surfaces with a 6 kW laser source and powder-fed optics; workpieces up to 8 tonnes.
- Laser
- 6 kW, 900–1,070 nm
- Focus
- 2.28 – 7.32 mm adjustable
- Workpiece
- Up to 8 tonnes
- Robot
- 50 kg payload
What the system does
Renewing the surface of a worn shaft instead of replacing it cuts both cost and lead time. But conventional build-up methods put in too much heat and distort the part.
Laser cladding works at low heat input: a 6,000 W continuous-wave laser and a COAX-8 nozzle with a focus adjustable between 2.28 and 7.32 mm deposit a controlled clad layer on the surface.
Shaft-type parts are rotated safely on a dual-axis positioner with a 5-tonne hydraulic tailstock and support, carrying workpieces up to 8 tonnes. A CMOS camera integrated into the optics monitors the process live.
What sets this system apart
- 6 kW continuous-wave laser
- COAX-8 cladding nozzle with adjustable focus
- Heated twin-hopper, robot-controlled powder feed
- Process monitoring with a CMOS camera in the optics
Where is this system used?
- 01 Renewal of worn shafts
- 02 Surface engineering for marine equipment
- 03 Protective cladding on hard-to-reach surfaces
Send us your part; let's start with a sample welding trial.
Our engineering team responds with a feasibility study.
