Twin Inverted Robots on a 24-Metre Slider
Two robots work in sync on HEB600 class profiles; both sides of a long beam are welded simultaneously and the part is never turned.
- Slider Length
- 24 metres
- Robots
- 2 × 8 kg on synchronised inverted booms
- Positioners
- 2 dual sets, 5,000 kg, 3 m rail
- Profile Class
- HEB600
What the system does
In structural steel the part is long, heavy and different on every order. Welding the two sides of a beam in sequence means crane time to turn the part.

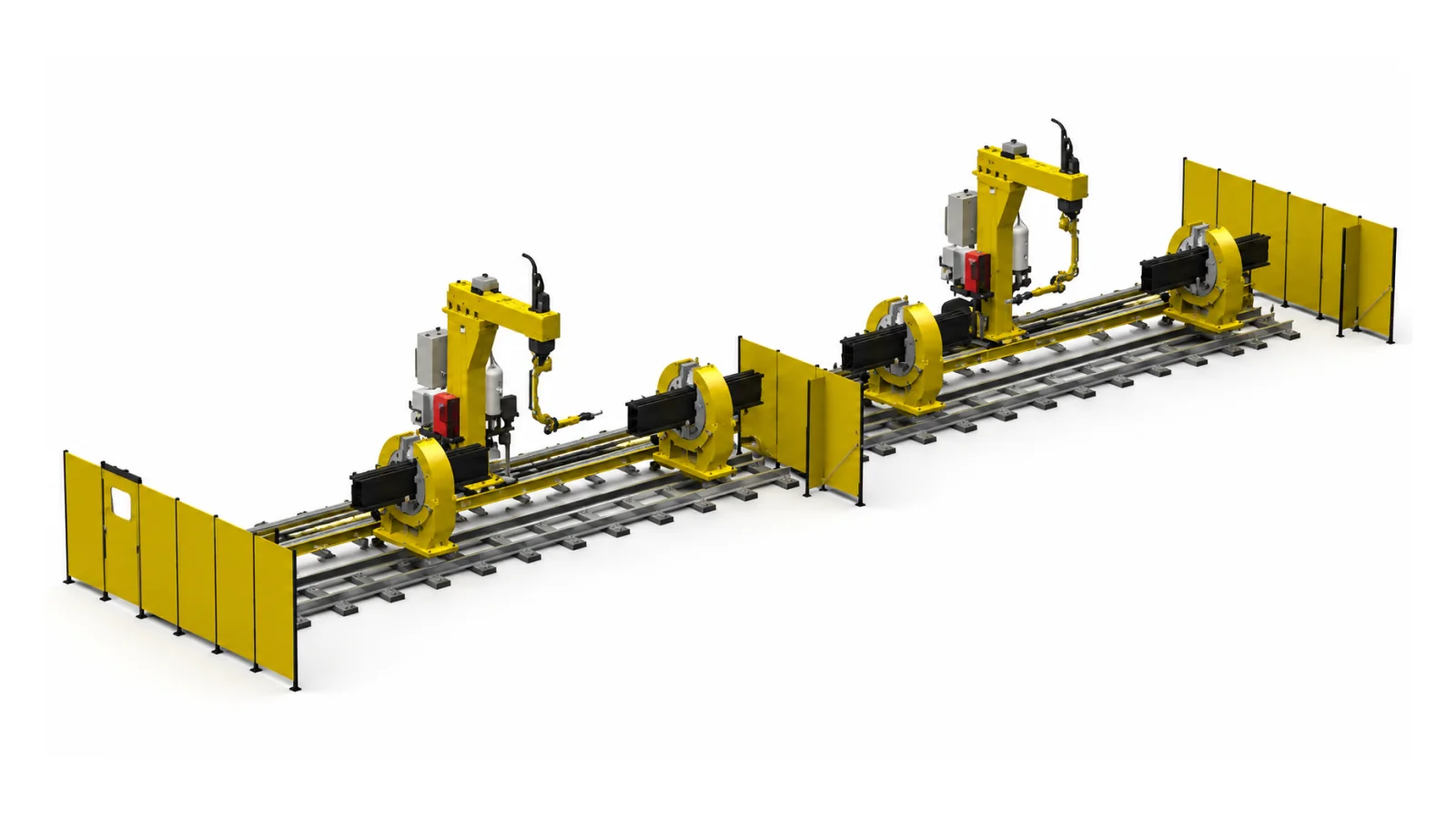

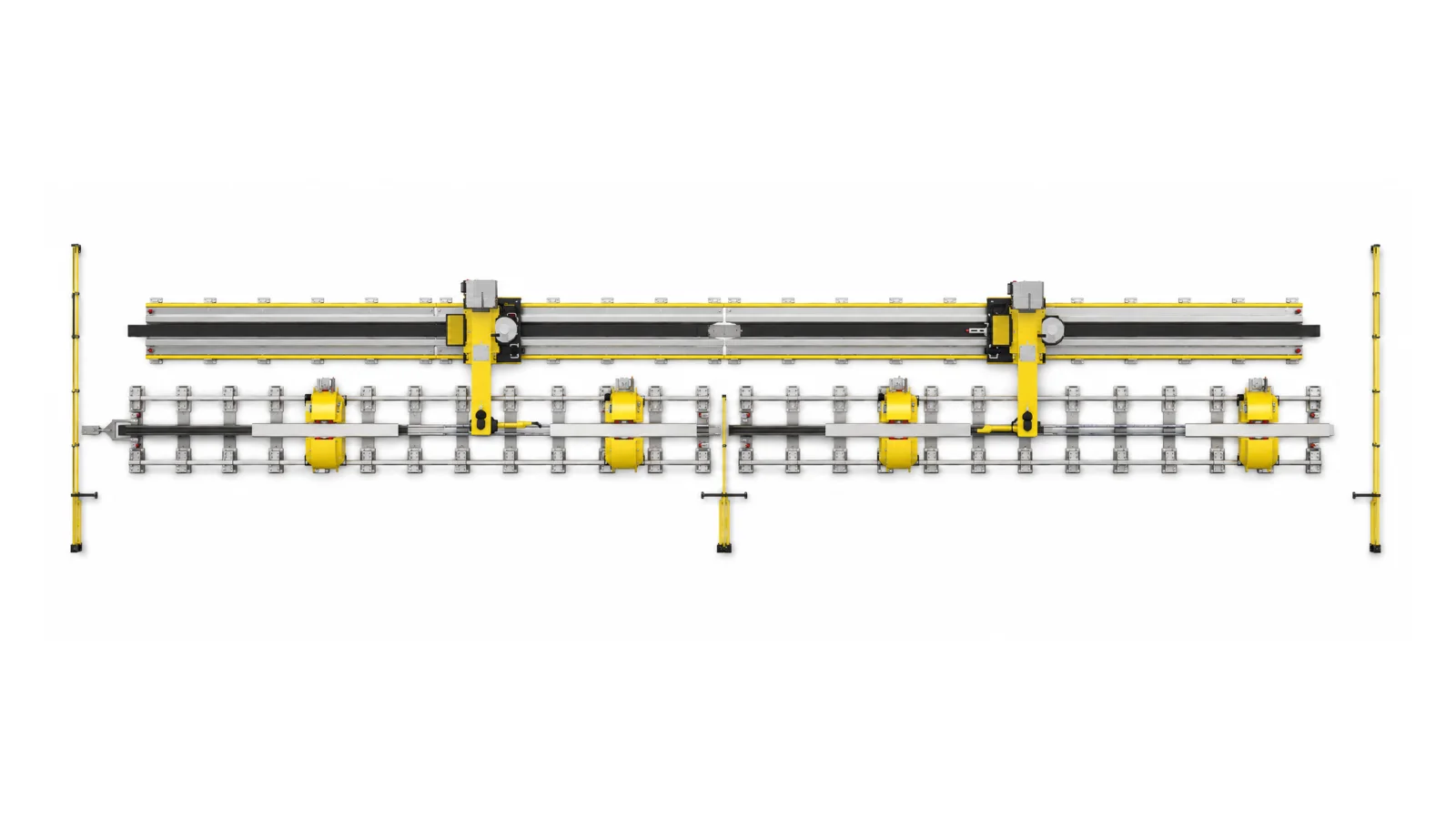

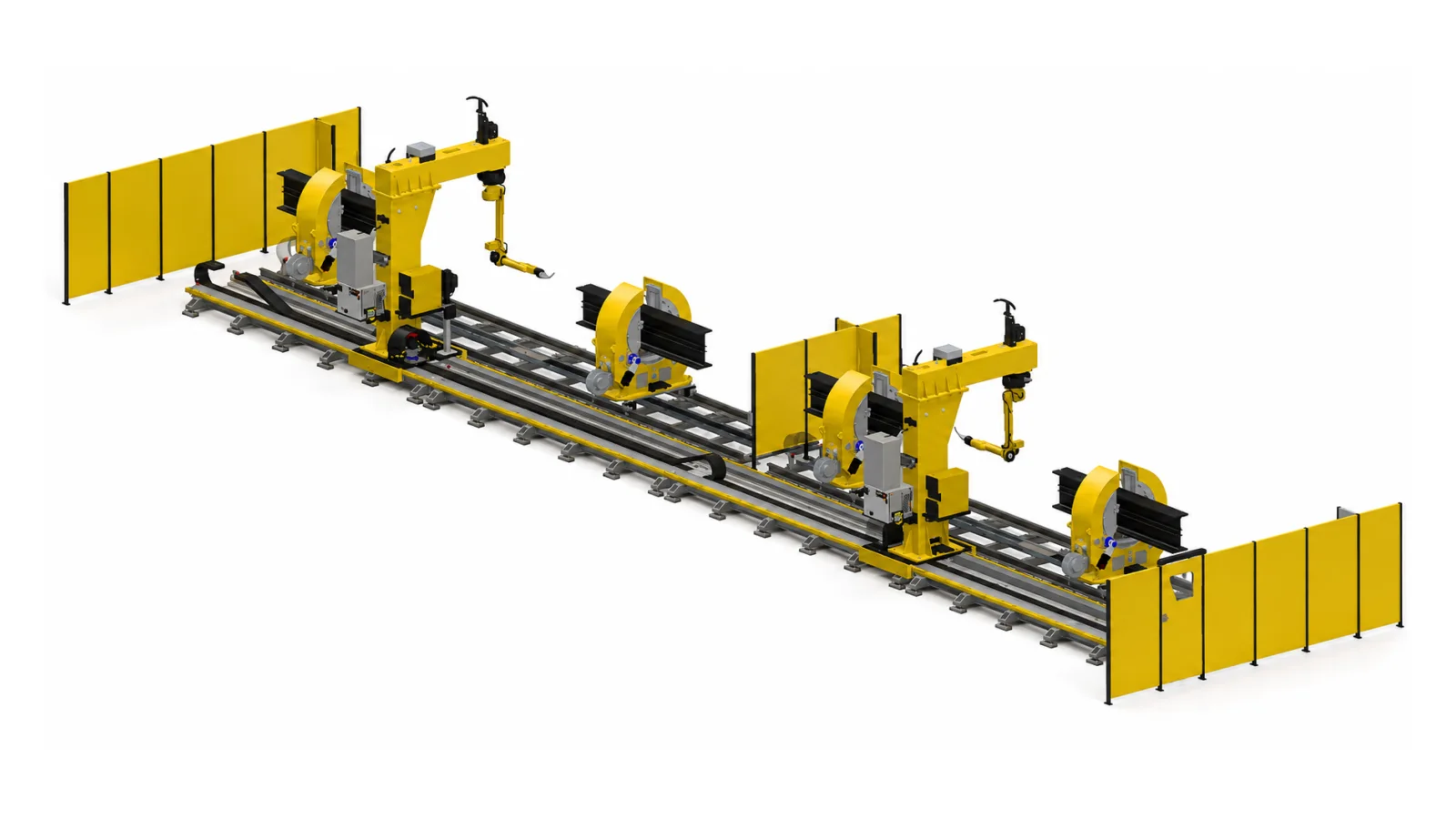

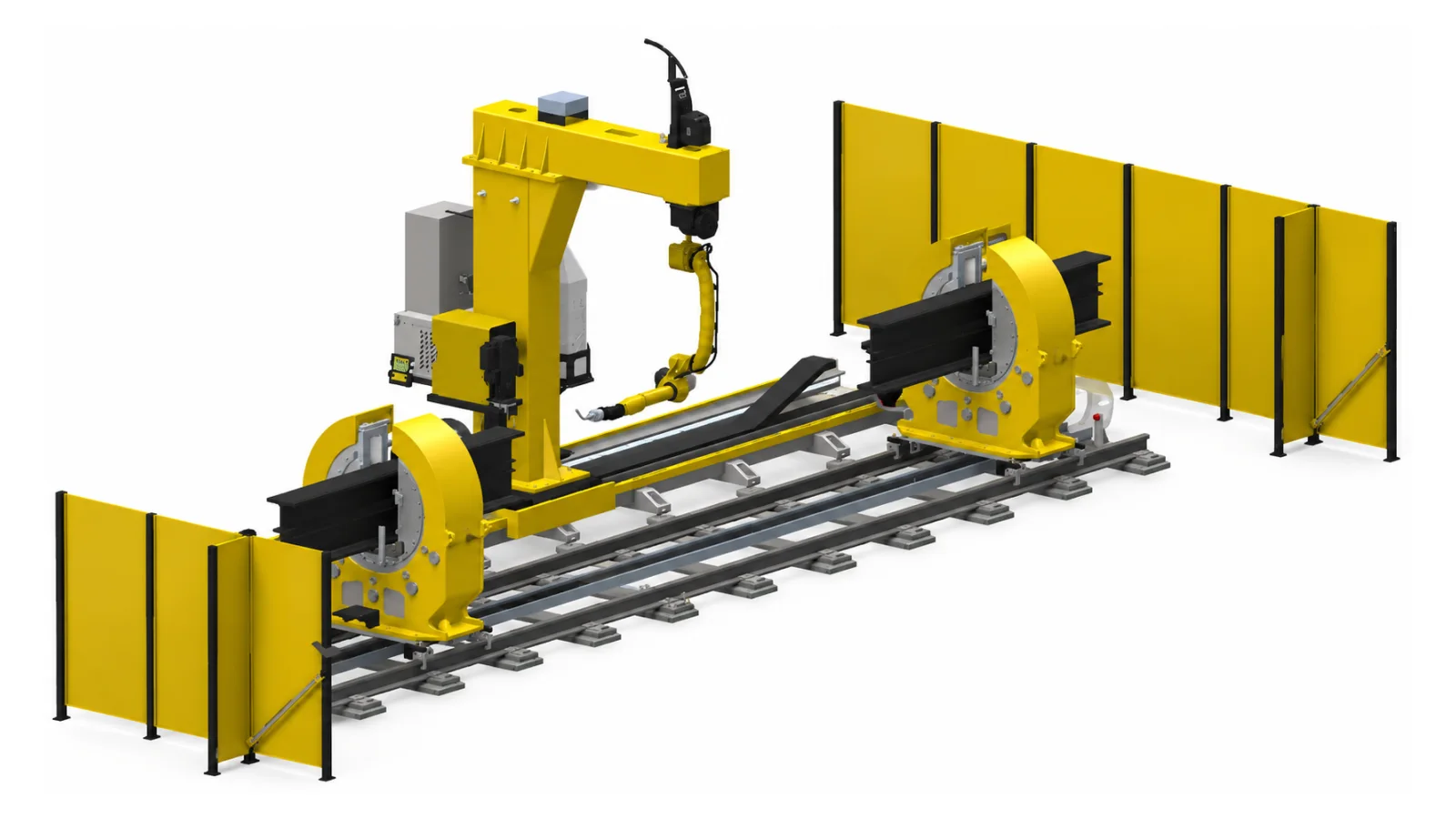

Here two robots hang inverted from a single 24-metre slider and work in sync, welding both sides of a long beam simultaneously. The face spacing of the 5,000 kg dual positioner sets adjusts to part length.
Where every order differs, programming is the real bottleneck; welding programs are generated directly from the 3D CAD model with MOSES ARC22. ARC Sense and automatic torch recovery remove the need to reprogram after a collision.
What sets this system apart
- Two synchronised robots on inverted booms
- ARC Sense and automatic torch recovery
- Adjustable faceplate spacing
- Programs generated from CAD with MOSES ARC22
Where is this system used?
- 01 Structural steel beams (HEB profiles)
- 02 Steel construction
- 03 Heavy welded fabrication
Send us your part; let's start with a sample welding trial.
Our engineering team responds with a feasibility study.
